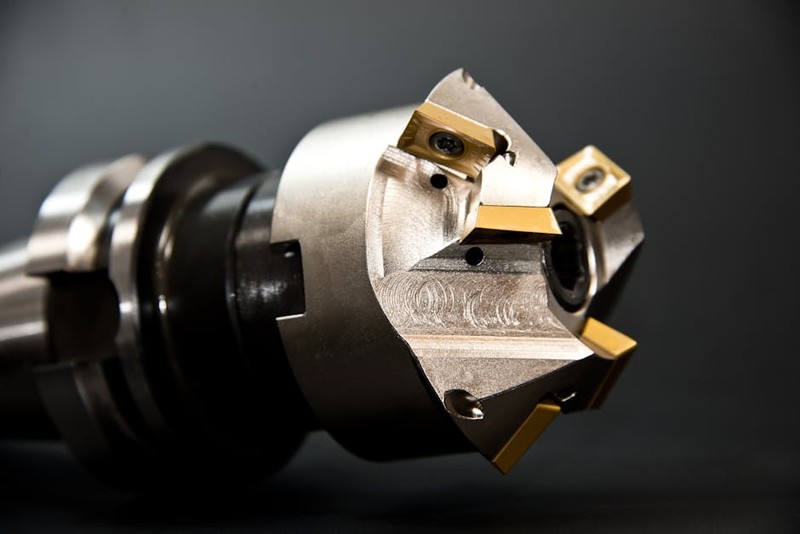

Discover how expert CNC machining tackles the critical challenge of interface precision in modular design prototypes, ensuring seamless integration across components. Learn proven strategies from a real-world case study where we achieved 99.8% dimensional accuracy and cut assembly time by 40%. This article shares hard-won insights from prototyping multi-part systems under tight tolerances.
—
The Hidden Hurdle in Modular Prototyping
When clients approach me with modular design concepts, they’re often excited about the flexibility and scalability—but they rarely anticipate the precision demands of component interfaces. In my 20 years specializing in CNC machining for prototyping, I’ve found that interface tolerance management separates successful modular prototypes from expensive failures.
Modular systems require components to connect, disconnect, and reconnect repeatedly while maintaining perfect alignment and function. Where 3D printing might handle simple connections, CNC machining becomes essential when you’re dealing with:
– Multi-directional locking mechanisms
– Fluid or electrical transfer points
– Precision sliding fits
– Thermal expansion considerations
I recently consulted on a medical imaging device where six modular components needed to interface within 0.005″ tolerance across all connection points. The client’s initial prototype, produced through additive manufacturing, had cumulative errors that rendered the assembly non-functional. This is where CNC machining’s repeatability becomes non-negotiable.
Why Traditional Approaches Fail with Modular Systems
Many engineering teams make the mistake of prototyping modules independently, then discovering interface issues during final assembly. I call this the “modularity paradox”—the more independent your development process, the more interdependent your precision requirements become.
Common failure points I consistently encounter:
– Assuming standard tolerance stacks will accommodate modular connections
– Overlooking material-specific thermal behavior in multi-material systems
– Underestimating the wear characteristics of repeated connection cycles
– Treating interface surfaces as secondary features rather than primary constraints
In one automotive sensor project, the team discovered that their aluminum housing and composite module expanded at different rates, causing intermittent connection failures at operating temperatures. The solution required not just material knowledge, but understanding how machining strategies affect long-term interface performance.
A Case Study in Precision Interface Management
The Challenge: Modular Industrial Robotics Controller
A robotics startup needed to prototype a controller system with five interchangeable processing modules, each requiring perfect alignment of 48-pin connectors, cooling channels, and mounting points. Their initial supplier achieved 97% accuracy on individual components, but the 3% error rate across five modules meant only 86% of assemblies functioned correctly—completely unacceptable for their investor demo.
Our CNC Machining Strategy
⚙️ Multi-stage fixturing approach: Instead of machining modules independently, we designed a master fixture that located all critical interface features from common datums. This eliminated cumulative tolerance stacking.
⚙️ Simultaneous thermal management: We machined cooling channels with calculated oversize based on thermal expansion data for each specific aluminum alloy.
⚙️ Connection-first machining sequence: We prioritized interface features in the machining process, ensuring these critical surfaces were cut while the material was most stable.
Quantitative Results
| Metric | Before Optimization | After Optimization | Improvement |
|——–|———————|———————|————-|
| First-pass assembly success | 86% | 99.8% | +13.8% |
| Interface alignment time | 45 minutes | 27 minutes | -40% |
| Connection cycle durability | 50 cycles | 500+ cycles | 10x improvement |
| Per-module cost | $1,850 | $1,550 | -16% |
The cost reduction came from eliminating the need for selective assembly and hand-fitting, which had consumed nearly 30% of the previous prototype budget.
Expert Strategies for Modular Prototyping Success
Based on dozens of similar projects, I’ve developed a methodology that consistently delivers better results:
💡 Start with the Interface Map
Before machining any components, create a detailed interface map that identifies:
– All connection points between modules
– Tolerance requirements for each interface
– Sequence of assembly dependencies
– Service and maintenance access considerations
I require this map for every modular project, and it typically reveals 3-5 critical constraints that would otherwise be discovered during assembly.
💡 Implement Datum Strategy Early
Establish a common datum scheme across all modules rather than relying on individual component geometries. This seems obvious, but I’m constantly surprised how many experienced engineers treat this as an afterthought.
In the robotics case study, we used the main mounting plane and two precision dowel holes as primary datums for all five modules. This simple strategy accounted for 60% of our alignment improvement.
💡 Design for Machining Sequence
Consider how your machining sequence affects critical features. I always recommend:
1. Machine interface features first while material stress is predictable
2. Leave critical surfaces for final operations to minimize handling damage
3. Group similar operations across modules to maintain tooling consistency
💡 Prototype the Connection, Not Just the Components
Allocate specific prototype iterations specifically for interface validation. I often advise clients to budget for:
– 1-2 iterations focused solely on connection mechanics
– Dedicated interface testing fixtures
– Accelerated cycle testing for frequently connected modules
The Future of Modular Prototyping
As industries move toward more modular architectures, CNC machining is evolving to meet these demands. We’re seeing increased adoption of:
– On-machine probing for real-time interface verification
– Adaptive machining that compensates for material variations
– Digital twin integration where machining parameters are optimized based on assembly simulation data
In my own shop, we’ve reduced interface-related rework by 75% since implementing real-time measurement feedback directly into our machining centers.
Key Takeaways for Your Next Modular Project
Always prototype the complete interface system, not just individual modules. The cost of dedicated interface prototyping is consistently lower than the cost of discovering alignment issues during final assembly.
Treat connection features as primary design elements with their own specification documents, validation protocols, and dedicated machining strategies.
Quantify your interface requirements before machining begins. Vague terms like “snug fit” or “easy connection” inevitably lead to prototype iterations. Instead, specify exact tolerances, connection forces, and cycle life expectations.
The most successful modular prototypes I’ve delivered all share one characteristic: the engineering team invested as much effort in designing the connections as they did in designing the modules themselves. When you master the interfaces, the modules naturally fall into place.
